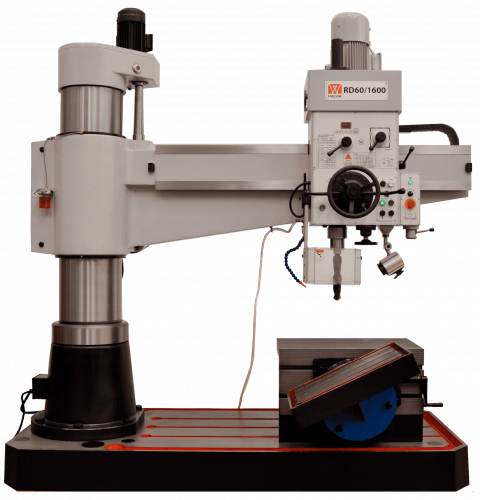

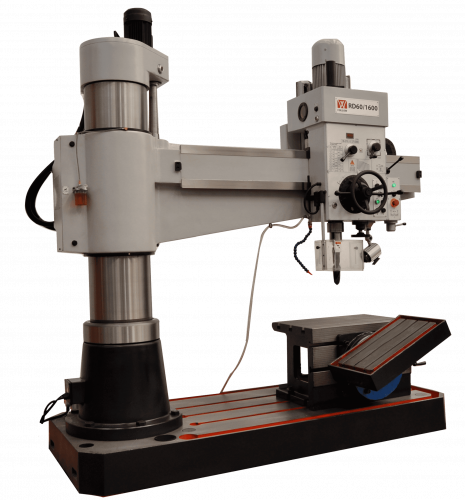

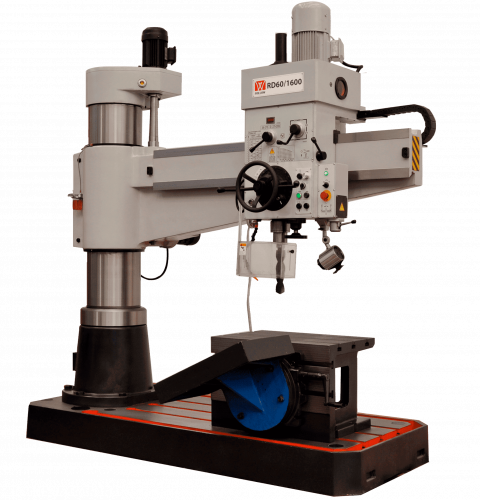

RADIAL DRILLING MACHINE FOLLOW RD60/1600
Ref.: RD60/1600 FOLLOW
| Dimensions (length x width x height) | 2490x1050x2780 |
| Worktable surface | 1700-970 |
Technical specs
| Characteristics | ||
| Brand | FOLLOW | |
|---|---|---|
| Max drilling capacity | mm | 60 |
| Max reaming capacity | mm | 72 |
| Spindle travel | mm | 325 |
| Feed number and range | mm/min | 2 (0,06-1,00) |
| Speed number and range | rpm | 2(38-275/275-2000) |
| Main spindle morse taper | MT5 | |
| Distance spindle center/ column | mm | 350-1600 |
| Distance max. between spindle to base | mm | 350-1250 |
| Table surface | mm | 750x500 |
| Worktable surface | mm | 1700-970 |
| Headstock and arm brake motor power | kw | 0.75/1 |
| Power of coolant pump | Kw | 1.2/1.6 |
| Electrical voltage | V | 220-380 V - 50/60 Hz |
| Dimensions (length x width x height) | mm | 2490x1050x2780 |
| Net weight | Kg | 3800 |
Standard configuration
- Cubic table 750x500x500
- Coolant system
- Work Light
- CE certificate
