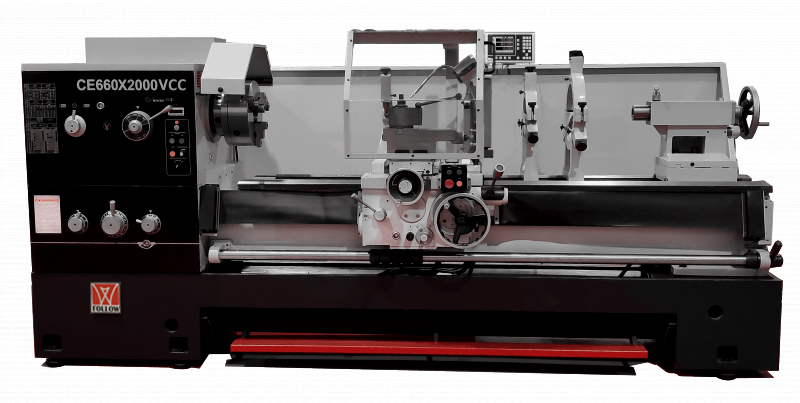

ELECTRONIC LATHE FOLLOW CE660X2000VCC
Ref.: CE660X2000VCC FOLLOW
| Main spindle hole | 105 |
| Spindle nose | CAMLOCK Nº8 |
| Dimensions (length x width x height) | 3500x1130x1630 |
Technical specs
| Characteristics | ||
| Brand | FOLLOW | |
|---|---|---|
| Distance between centers | mm | 2000 |
| Swing over bed | mm | 660 |
| Swing over ram | mm | 820 |
| Swing over carriage | mm | 420 |
| Bed width | mm | 390 |
| Length gap | mm | 330 |
| Main spindle hole | mm | 105 |
| Spindle nose | CAMLOCK Nº8 | |
| Main spindle morse taper | MT7 | |
| Speed number | 4 variable | |
| Longitudinal feed | mm/min | 0,063-2,52 |
| Cross feed | mm/min | 0,027-1,07 |
| Metric pitch | 0,5-7 | |
| Pasos Whitworth | 28-2 | |
| Modular pitch | 1-14 | |
| Diametral pitch | 0,5-7 | |
| Main spindle pitch | mm | Ø - 40x 12 DP |
| Cross carriage travel | mm | 350 |
| Carriage travel | mm | 150 |
| Max. dimension of tool | mm | 32x32 |
| Diameter tailstock quill | mm | 75 |
| Tailstock morse taper | MT 5 | |
| Power of the main motor | kw | 7,5 |
| Power of motor pump | Kw | 0,09 |
| Dimensions (length x width x height) | mm | 3500x1130x1630 |
Standard configuration
Display FAGOR X, Y
3 jaw universal chuck Ø 315mm
4 independent jaw chuck Ø 500mm
Face plate Ø 630mm
Electronic variator
Steady rest Ø min. 20mm Ø max. 120mm
Steady rest Ø min. 120mm Ø max. 260mm
Follow rest Ø min. 20mm Ø max. 80mm
Carriage stop
Rear guard chip protection
Spindle protection
Quick change tool post 4 positions
Taper turning attachment
Thread indicator
Cast-iron legs
Coolant system
Work light
Tool box
Certificate CE
